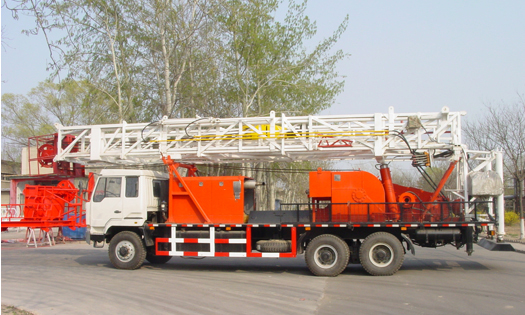

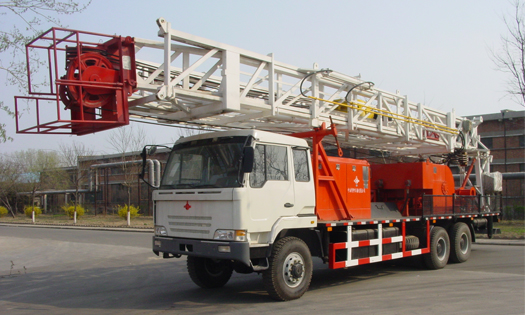

150HP service rigs are a kind of
truck-mounted service equipment.
The oilfield service machine adopts the
second-class chassis, and it is equipped with auxiliary frame, P.T.O, hydraulic
torque converter, winch drum, brake system, angle gear box, two section
telescopic mast, traveling system, weight indicating equipment, air and
electric system.
Features
1. Reasonable engine power configuration, high lifting speed and high working efficiency.
2. In the transmission system, the hydraulic torque converter of oilfield service machine makes the transmission stable and flexible. It can be adjusted steplessly and the using rate of engine power is high.
3. The drum of 150HP workover well-servicing rigs adopts double-end input clutch. It can realize the reverse rotation, and benefit for the falling of the hook.
4. The mast of oilfield service machine is pneumatic load-bearing type with steady structure.
Parameters
Parameters of 150HP Workover Rig
|
Chassis type
|
6×4 second-class chassis
|
|
Workover depth (2 7/8″ upset tubing) m
|
2600
|
|
Nominal hook load kN
|
300
|
|
Max. hook load kN
|
585
|
|
Diameter of rope mm / Effective number of
rope n
|
φ22/6
|
|
Mast height m
|
18
|
|
Outside dimension when moving (including
mast) mm
|
10590×2490×3950
|
|
Curb weight kg
|
22770
|
