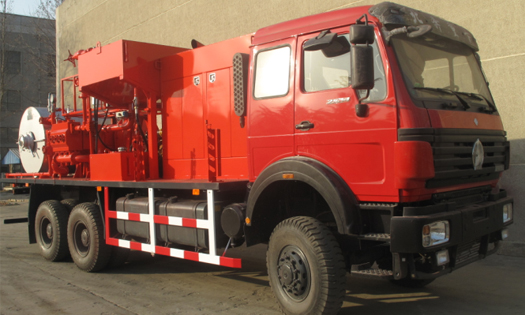

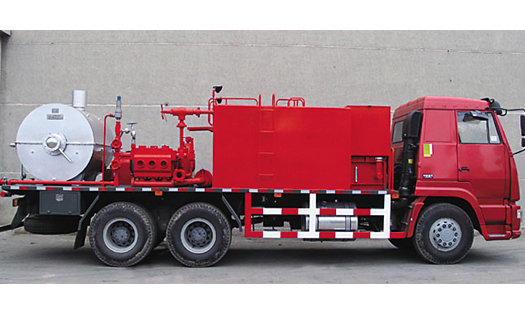

Based on the second-class chassis, the well flushing-wax removal truck is refitted by adding platform, diesel engine, clutch, transmission, triplex cylinder plunger pump, water tank, truck-mounted special boiler, burner, air supply system, pump suction and discharge piping, boiler inlet and outlet pipelines, driving system, hydraulic system, air source system, control system and so on.
The well flushing and paraffin removal truck is mainly used for thermal washing and broken down of oil production well; high pressure well washing and pressure testing; paraffin removal of pipe and pole cooperating with workover operations.
The well flushing-wax removal truck also widely used for heating other medium, unclogging and unfreezing surface pipeline and cleaning equipment and so on.
Optional parts: VOLVO engine, Carter engine, Detroit engine, hydraulic torque converter, ZF gearbox, 400hp pump, 700ph pump. Optional chassis: Beiben (6×4, 6×6), Shanqi (6×4, 6×6), Sinotruck (6×4, 6×6), Dongfeng (6×4, 6×6).
Features
1. This well flashing-wax removal truck combines well flushing under high pressure, well cementing, fracturing, hot well-flushing, steam paraffin removal and pressure testing together.
2. It has the characters of smooth flowing medium, high efficient thermal, high usage of equipment, longer service life of triplex cylinder plunger pump and truck-mounted boiler, secure and reliable of burner firing, convenient repair and maintenance.
3. The well flushing and paraffin removal truck is an ideal device for flushing operation and paraffin removal operation.
Parameters
Parameters of Well clean out and Paraffin Removal Truck
Max. working
pressure MPa
|
35,40,70
|
|
Max. heat wash working
displacement m3/h
|
≮22.5
|
Max.
displacement m3/h
|
50,60,80,100
|
Working medium
|
Crude oil,water
|
Max. heat wash working
pressure MPa
|
20
|
Boiler fuel type
|
Diesel oil
|
Max. heat wash working
temperature ℃
|
160
|
Working voltage
|
24VDC
|
Displacement at max. heat wash
temperature m3/h
|
≮4.9
|
Power source of triplex cylinder plunger
pump
|
Truck-mounted engine
|
