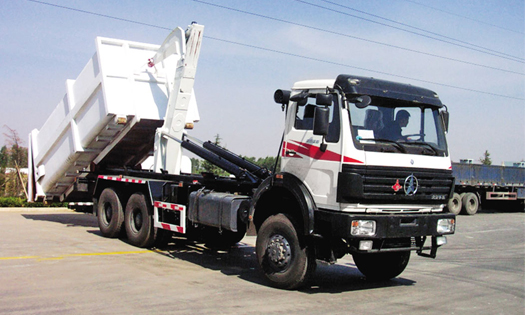

The hydraulic dump truck is mainly composed of chassis, self loading and unloading system and cargo pallet. It is mainly used to load and unload 4.5m~8.5m tank and cabinet. Its pull force reaches to 10t.

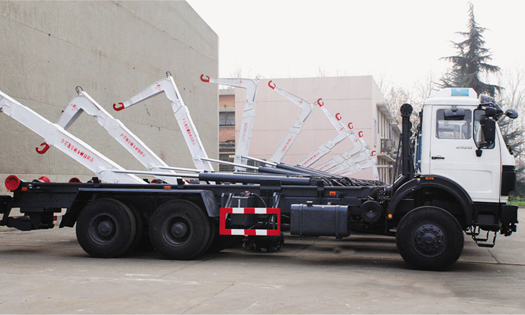

The self-load and unload system of self-dumping truck adopt swept body, full hydraulic drive, reversible box-type lifting arm and "L” type swinging arm.
The lifting arm, swinging arm and drawhook of hydraulic dump truck adopt imported high strength steel, and the rear end is equipped with stabilizing device (hydraulic outrigger).
Mode of the power takeoff is clockwise pattern.
Features
The hydraulic dump truck integrated loading, unloading and transportation together. It adopts pallet to speed loading and unloading process. It is easy to operate.
Parameters
Parameters of Dump Truck with Hydraulic Arm
|
Overall
size (mm)
|
11026 × 2495 ×3260
|
|
Overall Weight (kg)
|
24980
|
|
Rated
load (kg)
|
11170
|
|
Curb
weight (kg)
|
13680
|
|
Driving form
|
6×6
|
|
Handing time (load / unload)
|
100s/110s
|
|
Hydraulic system pressure
|
27 MPa
|
|
Hydraulic system flow
|
40 L/min
|
|
Oil pump
|
Import axial plunger pump, Italy
|
