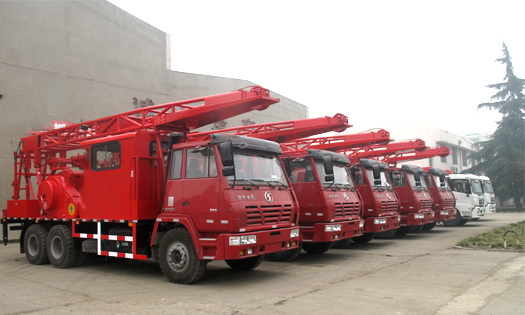

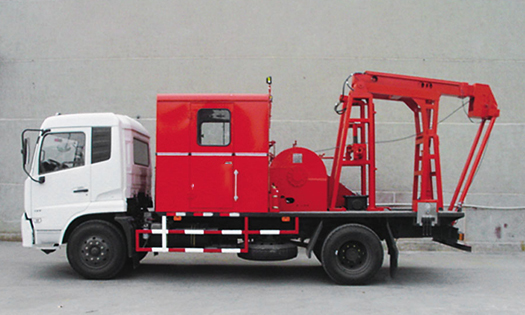

Rear-mounted Swabbing Unit
Description
The basic structure of the whole truck-mounted swabbing unit is truck-mounted moving type. The framework is installed on the frame and the front support frame is installed on the front of the framework,.
The middle part of the framework has full power P.T.O, operating room. lifting oil cylinder, drawworks and angle gear box.
The rear part of the framework are rear support frame, hydraulic outrigger cylinder, hydraulic oil tank etc.
The mast is the truss structure, and the rear part is connected with the rear support frame by pin. The middle part is connected with the lifting cylinder actively. The drawworks power comes from the engine of the chassis and t is transmitted to the drawworks passing through full power P.T.O, transmission shaft, angle gear box, main chain, then drives the drawworks to finish the positive and reverse rotation. The hydraulic oil in the pipeline is supplied pressure by setting side P.T.O and driving the gear pump rotate.
Features
The rear-mounted swabbing unit has the following features: high operation speed, large lifting tonnage, reasonable distribution ratio of the transmission coefficient, long service life, high safety factor for mast, safe and reliable, reliable control etc. It is one of the powerful production increasing equipments in oil field.
Rear-mounted swabbing unit
|
Max. lifting capacity (in the min
diameter part of the drum)
|
120
|
|
Max. working depth
|
1850,2350,2550,2850
|
|
Mast structure
|
Integral type, separate type, sectional
type
|

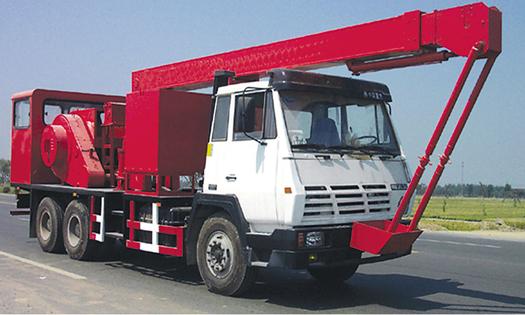

Front-Loading Swabbing Unit
Description
The basic structure of this equipment is truck-mounted moving type. It adopts second class chassis as mounting base and the framework is installed on it.
The framework is chosen as a installing foundation for special working equipment and working platform. The front and rear support frames are installed on the framework to support the mast. The special equipments adopt mechanical transmission and its power is provided by the chassis engine, and is transmitted to the drawworks passing through transmission shaft, full power P.T.O and angle gear box, then the drawworks drives the swab moving up and down through wire line. The hydraulic system will take off power from side of the chassis engine.
Features
The front loading swabbing unit has the following features: high operation speed, large lifting tonnage, reasonable distribution ratio of the transmission coefficient, long service life, high safety factor for mast, safe and reliable, reliable control etc, it is one of the powerful production increasing equipments in oil field.
Front loading swabbing unit
|
Max. lifting capacity (in the min
diameter part of the drum)
|
80
|
|
Max. working depth
|
1850,2350
|
|
Mast structure
|
Mast type
|

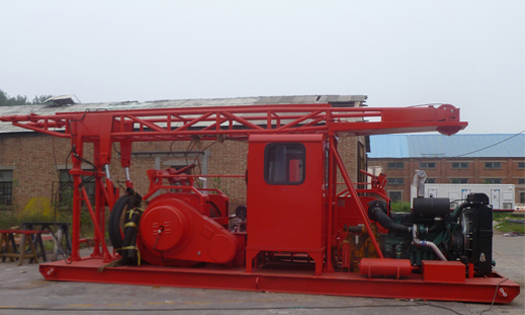

Pry mounted unit
Description
The basic structure of this truck mounted swabbing unit is skid-mounted type. Spare parts like engine, transmission box, operating room, drawworks, angle gear box, rope arranging device, mast and some other special equipments are installed on the skid. The engine power passes through transmission box, transmission shaft, angle gear box, main chain to the drawworks and then drives it.
Features
The pry mounted swabbing unit has the following features: high working speed, large lifting tonnage, reasonable distribution ratio of the transmission coefficient, long service life, high safety factor for mast, safe and reliable, reliable control etc. it is one of the powerful production increasing equipments in oil field.
Pry-mounted swabbing unit
|
Max. lifting capacity in the min.
diameter of the drum
|
120
|
|
Min. lifting capacity in the min.
diameter of the drum
|
80
|
|
Max. working depth
|
3350
|
