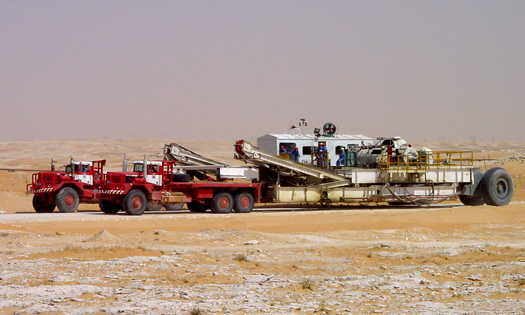

This rig substructure moving equipment can move the whole ZJ40/50/70/90 rig substructure.
Being equipped with hydraulic raising system, traction device, traction axle and bearing axle of substructure, this drill rig moving equipment can greatly reduce moving times.
As a drill rig moving system supplier in China, our drill rig moving equipment for substructure is an ideal equipment to move rigs which can save time and cost as well as improve working efficiency.
Features
It can realize the whole movement of ZJ40/50/70/90 drilling rig substructure.
Applications
Rig Substructure Moving Equipment,Drill Rig Moving Equipment,China Drill Rig Mover Supplier is engineered for moving of heavy rig substructures and base sections.
- Primary use: high-capacity hydraulic lifting and transport system for the heavy substructure components of large drilling rigs.
- Built for reliable daily operation in demanding onshore oil and gas environments across the Middle East, Central Asia, Africa, and Southeast Asia.
- built for the extreme weight loads of deep drilling rig substructures during rig moves between locations.
FAQs
Q: How long does a typical rig move take with this system?
A: Most short moves between adjacent well pads can be completed in 4-8 hours, compared to days with conventional disassembly.
Q: Is this system compatible with my existing rig?
A: Most land rigs can be retrofitted with a moving system; we just need the rig dimensions and weight to design the right configuration.
Q: How many people are needed to operate the moving system?
A: A 4-person crew can operate the entire system, with one operator controlling the hydraulic power unit.
Parameters
|
Basic performance
|
Design parameter
|
|
Max total weight of drilling rig (t)
|
180~330
|
|
Max moving capacity of drilling rig solid
moving system (t)
|
220~390
|
|
Min clearance from ground (mm)
|
600
|
|
Max moving speed (km/h)
|
10km/h
|
|
Width of application road (mm)
|
12000
|
|
Temperature of application environment(℃)
|
-17~55
|
