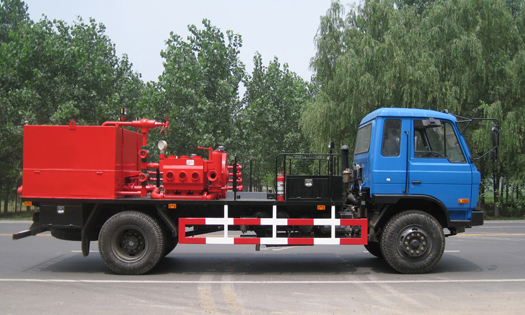

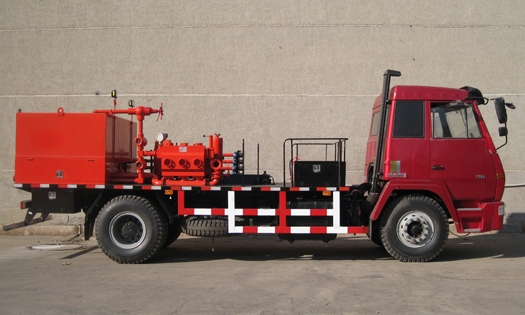

Well Flushing Truck

This series of well flushing truck can finish well flushing and pressure testing with the adoption of chassis engine. It also can meet the requirement of displacement and pressure depending on the gear box of chassis. The suitable medium are clear water and crude oil. Based on the second class chassis, the well flushing truck without pressure is refitted by adding platform, diesel engine, clutch, mechanical transmission, quintuple cylinder plunger pump, water tank, high pressure manifold, suction piping, decompressor, lubrication system, operating system and so on. The truck is mainly used for well flushing of high pressure injection well. Based on the second-class chassis, the 350 well flushing truck is refitted by adding platform, full power PTO, triplex cylinder plunger pump, water tank, pump suction and discharge piping, wellbore pipelines, driving system, operating system and so on. The truck is mainly used for well flushing and testing. The optional parts are: overpressure protection device, engine timing device. Optional chassis: Beiben (4×2, 6×4, 6×6), Shanqi (4×2, 6×4, 6×6), Sinotruck (4×2, 6×4, 6×6), Dongfeng (4×2, 6×4, 6×6). testing. Optional parts: overpressure protection device, engine timing device. Optional chassis: Beiben (4×2, 6×4, 6×6), Shanqi (4×2, 6×4, 6×6), Sinotruck (4×2, 6×4, 6×6), Dongfeng (4×2, 6×4, 6×6).

Features

Features of Well Flushing Truck

1. The truck is used for well flushing of high pressure injection well without pressure leakage.
2. It simplifies equipment and can complete multiple functions instead of former four devices (two sets of cementing truck, one set of water-tank lorry, one set of truck), reduce operation cost.
3. Its operating system is safe and simple and meets the requirements of oil field operation.
4. The well flushing truck without pressure relief can shorten operating time and improve operational efficiency.

Features of 350 Well Flushing Truck

This truck has the characters of high pressure, large displacement and controlled technical parameter. Triplex cylinder plunger pump has advantages of high performance, smoothly flowing of working medium and long life of the wearing parts.

Parameters

Parameters of Well Flushing Truck without Pressure Leakage


Technical Parameter
Max.working pressure MPa 40 Decompressor Inlet pressure MPa ≤40
Max. displacement m3/h 30 Outlet pressure MPa ≤0.8
Inlet pressure of booster pump MPa 12~16 Outlet displacement m3/h ≤35
Working medium Water

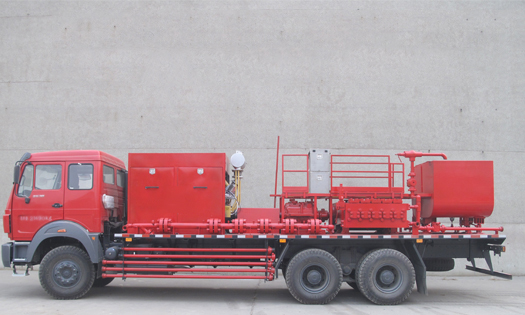

350 Well Flushing Truck

TECHNICAL PARAMETER
Max. working pressure MPa 35 Working medium Crude oil, water
Max. displacement m3/h 50,80 Power source of triplex cylinder plunger pump Chassis engine
